WINDLASS & WINCHES

Masada has set a new standard in anchor windlass and mooring winches, meeting and exceeding the needs of the offshore industry.

Jump to section

WINDLASS & WINCHES
Product Range
Hydraulic Mooring Winches
Electric Mooring Winches
Hydraulic Windlass

A legacy of excellence in marine winch manufacturing

Masada started marine winch production in 2005. In 2008, Masada was licensed exclusively by Mitsubishi Heavy Industries (MHI) to produce winches and windlasses under the Masada-Mitsubishi brand.

2,500+ Marine Winches Produced Annually – Powering 50% of New Ships in China

Masada delivers industry-leading reliability and innovation, supplying high-performance winches to the world’s growing maritime sector.

Product Range

Innovative and reliable solutions for all maritime applications.

High Reliability

High Efficiency

Extensive Lineup

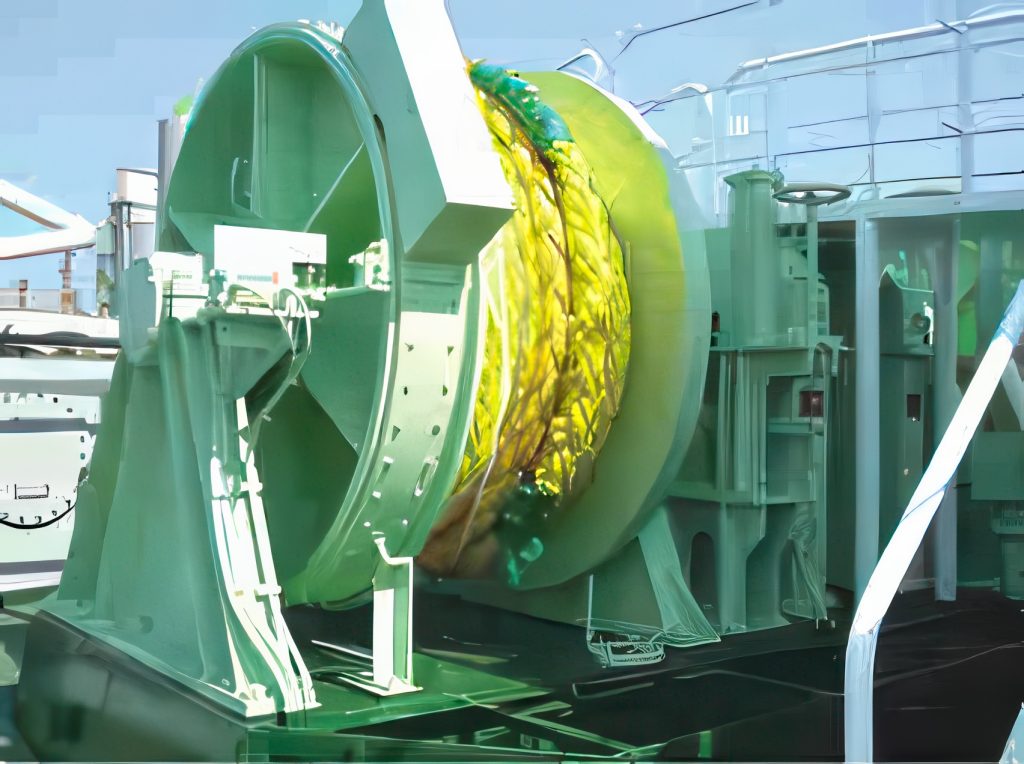

Hydraulic Mooring Winches

These robust systems are engineered to handle heavy loads and anchor lines with exceptional efficiency.

One of the main benefits of hydraulic mooring winches is their capability to deliver high pulling power, making them well-suited for demanding applications in offshore environments. Their durability and reliability are noteworthy, ensuring consistent performance even under extreme conditions.

Hydraulic Mooring Winch Parameters and Specifications

Specification of Hydraulic Winch	Rated Pull (kN)	Rated Speed (m/min)	Drum Capacity (m)	Motor Power (kW)
10kN	10	≥12	11 x 150	5.5
20kN	20	≥12	15 x 150	11
40kN	40	≥15	17.5 x 150	22
50kN	50	≥15	20.5 x 150	30
75kN	75	≥15	26 x 150	45
100kN	100	≥12	30 x 200	45
160kN	160	≥12	32 x 250	75
200kN	200	≥9.6	41 x 250	75
250kN	250	≥9.6	44.5 x 250	90
315kN	315	≥7.8	52 x 250	90
400kN	400	≥7.8	56 x 250	110
450kN	450	≥6	56 x 250	110
500kN	500	≥6	58 x 250	110
560kN	560	≥6	64 x 250	132
600kN	600	≥6	64 x 250	132
650kN	650	≥5	70 x 250	132
1000kN	1000	≥4	85 x 250	132
1200kN	1200	≥4	95 x 250	160
1500kN	1500	≥4	95 x 250	200
1800kN	1800	≥4	95 x 250	250
2000kN	2000	≥4	100 x 250	270

Electric Mooring Winches

Electric mooring winches are well-regarded in the maritime and offshore industry for their unique set of advantages. These winches are celebrated for their user-friendly installation and operation, catering to a wide range of vessel types and sizes. Their operation is notably quiet and smooth, reducing onboard noise and vibrations, enhancing crew comfort during anchor handling.

Main parameters and specifications

Specification of Hydraulic Winch	Rated Pull (kN)	Rated Speed (m/min)	Drum Capacity (m)	Motor Power (kW)
5kN	5	≥12	8 x 100	3/12
5kN	10	≥12	10 x 150	4.3/1.7
20kN	20	≥12	15 x 150	8.3/3.5
30kN	30	≥15	17 x 150	11/11/7.5
40kN	40	≥15	18 x 150	16/16/11
50kN	50	≥15	20.5 x 180	30/30/22
75kN	75	≥15	26 x 200	30/30/22
80kN	80	≥15	26 x 200	45/45/30
100kN	100	≥15	30 x 200	45/45/30
125kN	125	≥15	30 x 200	60/60/45
160kN	160	≥15	32 x 250	45/45/30
200kN	200	≥9.6	41 x 250	60/60/45
250kN	250	≥9.6	44.5 x 250	60/60/45
315kN	315	≥7.8	52 x 250	60/60/45
400kN	400	≥7.8	56 x 250	85/85/64
500kN	500	≥7.8	58 x 250	85/85/64
560kN	560	≥6	64 x 250	85/85/64
600kN	600	≥6	64 x 250	85/85/64
650kN	650	≥6	70 x 250	85/85/64
1000kN	1000	≥4	85 x 250	85/85/64
1200kN	1200	≥4	95 x 250	120/120/90
1500kN	1500	≥4	95 x 250	150/150/72
1800kN	1800	≥4	95 x 250	150/150/72
2000kN	2000	≥4	100 x 250	180/180/135

Hydraulic Windlass

Hydraulic windlass systems offer a distinct set of advantages that make them a preferred choice in the maritime industry. The robust nature of hydraulic power translates to substantial lifting capabilities, ensuring that hydraulic windlasses can handle heavier loads and anchor chains with ease. This strength is particularly advantageous for larger vessels, where the need for greater power and control is essential.

Hydraulic Windlass Specifications and Parameters

Specification of Hydraulic Windlass	Chain Diameter (mm)	Working Load (kN)	Weigh Anchor Speed (m/min)	Towing Force (kN)	Towing Speed (m/min)	Motor Power (kW)
19/20.5/22	19/20.5/22	15.3/17.9/20.6	≥ 9	15	≥ 12	7.5
24/26	24/26	24.5/28.7	≥ 9	20	≥ 12	11
28/30	28/30	33.3/38.3	≥ 9	25	≥ 12	15
32/34/36	32/34/36	43.5/49.1/55.1	≥ 9	30	≥ 12	22
38/40/42	38/40/42	61.4/68/75	≥ 9	50	≥ 12	30
44/46/48	44/46/48	82.3/89.9/97.9	≥ 9	60	≥ 12	37
50/52/54	50/52/54	106.3/143/153	≥ 9	60	≥ 15	37
56/58/60	56/58/60	133.3/143/153	≥ 9	80	≥ 15	40
62/64	62/64	163.4/174.1	≥ 9	100	≥ 15	47
66/68	66/68	185.1/196.5	≥ 9	120	≥ 15	55
70/73	70/73	208.3/226.5	≥ 9	147	≥ 15	60
76/78	76/78	245.5/258.6	≥ 9	147	≥ 15	70
81/84	81/84	311.7/335.2	≥ 9	167	≥ 15	90
87/90	87/90	359.5/384.8	≥ 9	200	≥ 15	102
92/95	92/95	402.2/428.7	≥ 9	200	≥ 15	115
97/102	97/102	446.9/494.2	≥ 9	250	≥ 15	130
105/107	105/107	523.7/543.8	≥ 9	250	≥ 15	145
111/114	111/114	585.2/617.3	≥ 9	250	≥ 15	160
117/122	117/122	650.2/707	≥ 9	250	≥ 15	187
132	132	827.64	≥ 9	300	≥ 15	250

Electric Windlass

Notable features of the electric windlass are their user-friendliness, offering easy installation and operation, making them suitable for a broad spectrum of vessels, including smaller craft. Electric windlasses are known for their quiet and smooth performance, significantly reducing noise and vibrations during anchor operations, enhancing onboard comfort.

Main Parameters and Specifications

Specification of Hydraulic Windlass	Chain Diameter (mm)	Working Load (kN)	Supporting Load (k/N)	Weigh Anchor Speed (m/min)	Mooring Load (kN)	Motor Power (kW)
19/20.5/22	19/20.5/22	17.2/20/23	135/157/180	≥ 9	15	8.3/8.5
24/26	24/26	27.4/32.1	214/250	≥ 9	20	8.3/8.5
28/30	28/30	37.2/42.8	289/330	≥ 9	25	11/11/7.5
32/34/36	32/34/36	48.6/54.9/61.6	374/421/470	≥ 9	30	16/16/11
38/40/42	38/40/42	68.9/76/83.8	522/576/632	≥ 9	50	22/22/16
44/46/48	44/46/48	92/100.5/109.4	691/753/816	≥ 9	60	20/20/22
50/52/54	50/52/54	118.8/128.4/138.5	882/950/1021	≥ 9	60	30/30/22
56/58/60	56/58/60	149/159.8/171	1093/1168/1245	≥ 9	80	45/45/30
62/64	62/64	182.6/194.6	1324/1405	≥ 9	100	45/45/30
66/68	66/68	206.9/219.6	1488/1573	≥ 9	120	45/45/30
70/73	70/73	232.8/253.1	1660/1794	≥ 9	147	60/60/45
76/78	76/78	274.4/289	1932/2026	≥ 9	147	60/60/45
81/84	81/84	311.7/335.2	2171/2320	≥ 9	160	75/75/36
87/90	87/90	359.5/382.8	2473/2629	≥ 9	200	28/84/84
92/95	92/95	402/428.7	2735/2898	≥ 9	200	85/85/64
97/102	97/102	446.9/494.2	3010.5/3874.5	≥ 9	250	85/85/64
105/107	105/107	523.7/543.8	3465/3582	≥ 9	250	115/225/38.3
111/114	111/114	585.2/617.3	3816/4000.5	≥ 9	250	120/120/90
117/122	117/122	650.2/707	4185/4495.5	≥ 9	250	137/137/100

Hydraulic Anchoring & Towing Winch

One of the key strengths of these systems is their unrivaled power and performance, designed to handle heavy towing operations with ease. Hydraulic winches offer exceptional control and reliability, making them a dependable choice for the safe and precise management of towing operations.

Main parameters and specifications

Type	Specification (T x m/min)	Motor for Hydraulic Pump (KW)	Chain Diameter (mm)	Drum Brake Force (T)	Rope Diameter (mm)
MOW-T30	1.5 x 13	18.5	19-22	30	80
MOW-T40	2 x 13	22	22-24	40	85
MOW-T50	2.5 x 13	30	24-26	50	90
MOW-T60	2.5 x 13	30	24-26	60	100
MOW-T70	3 x 13	30	24-26	70	100
MOW-T80	3 x 13	37	26-28	80	110
MOW-T90	3.5 x 13	37	26-28	90	110
MOW-T100	3.5 x 13	37	26-28	100	110
MOW-T120	3.5 x 13	37	26-28	120	110
MOW-T150	6 x 13	45	30-36	150	130

Hydraulic Towing Winch Specifications

Type	Specification (T x m/min)	Motor for Hydraulic Pump (KW)	Chain Diameter (mm)	Drum Brake Force (T)	Rope Diameter (mm)
MOW-T30	1.5 x 13	18.5	19-22	30	80
MOW-T40	2 x 13	22	22-24	40	85
MOW-T50	2.5 x 13	30	24-26	50	90
MOW-T60	2.5 x 13	30	24-26	60	100
MOW-T70	3 x 13	30	24-26	70	100
MOW-T80	3 x 13	37	26-28	80	110
MOW-T90	3.5 x 13	37	26-28	90	110
MOW-T100	3.5 x 13	37	26-28	100	110
MOW-T120	3.5 x 13	37	26-28	120	110
MOW-T150	6 x 13	45	30-36	150	130

OTHER WINCHES & COMPONENTS

Main Parameters and Specifications

Specification of Electric Hydraulic (Anchoring) and Mooring Capstan	Chain Diameter (mm)	Working Load (kN)	Working Speed (m/min)	Mooring Load (kN)	Mooring Speed (m/min)	Wire Diameter (mm)	Motor Power (kW)
	Chain Diameter (mm)	Working Load (kN)	Working Speed (m/min)	Mooring Load (kN)	Mooring Speed (m/min)	Wire Diameter (mm)	Electric	Hydraulic
12.5/14	12.5/14	5.9/7.4	≥12	5	≥10	11	3/1.2	4
16/17.5	16/17.5	10.9/13	≥12	8	≥10	13	4.3/1.7	7.5
19/22	19/22	15.3/20.6	≥13	10	≥10	13	6/2.5	11
24/26	24/26	24.5/28.7	≥9	20	≥8.5	15	7.5/7.5/5	11
28	28	33.3	≥9	30	≥8.5	17.5	11/11/7.5	15
30/32	30/32	38.3/43.5	≥9	30	≥8.5	17.5	16/16/11	15
34/36	34/36	49.1/55.1	≥9	30	≥8.5	17.5	16/16/11	18.5
38/40	38/40	61.4/68	≥9	30	≥8.5	20.5	22/22/16	30
42/44	42/44	75/82.3	≥9	50	≥8	20.5	22/22/16	30
52	52	128.4	≥9	50	≥8	20.5	30	37
60	60	171	≥9	50	≥8	20.5	37	45
